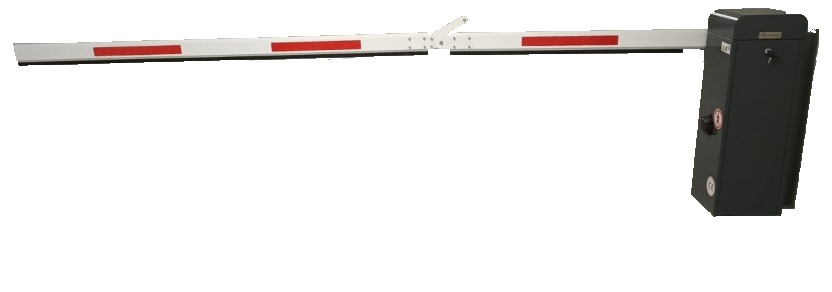

Barrier | DHI-IPMECD-3012

Barriers with 3 m (9.84ft) or 4 m (13.12 ft) arm are available. For the 3 m models, each section is 1.5 m, with fast opening time of 0.9 s or 1.4 s.
For the 4 m models, each section is 2 m, with opening time of 2 s.
12V DC output.
Opening and closing signal output.
Anti-drop function realized by connected radar, coil, or IR sensor.
Support remote control, with maximum distance of 50 m (164 ft).
Operating temperature: -40°C to +70°C (-40°F to +158°F).
Operating voltage: 220V AC±15%.
Protection grade: IP55.

System Overview

The barrier primarily consists of top cover, casing, drive unit, control box, and barrier arm (either at the right side or at the left side). It can be used together with radar for access control.

The barrier is applicable to access control for residential areas, hotels, governments, supermarkets, schools, airports, factories, public security and judicial organizations, ports, terminals, hospitals, etc.

Functions

Outstanding Performance

Automatic lifting when the barrier arm meets obstacle. Automatic opening in case of power failure.

Impressive Reliability

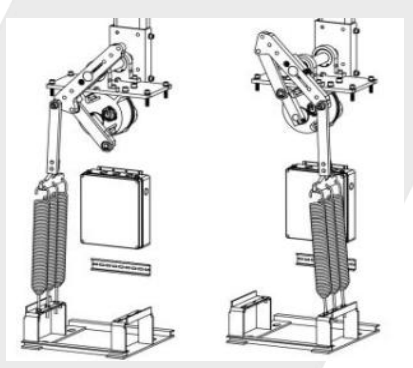

Driven by AC variable frequency motor, and equipped with well-designed transmission mechanism and balance spring, the barrier enjoys stable and reliable operation, with lifespan of motor and spring up to 5 million times.

Corrosion Resistance

Casing in aluminum alloy and sheet metal, and the surface is treated with spraying process of ultra-fine silver powder, ensuring high corrosion-resistance performance for 10 years.

Security and Safety

Designed with buffer strip on the arm for enhanced safety. The buffer strip is made of high-molecular-weight polyurethane (PU) which keeps soft and not stiff in cold environments.

Technical Specification

Basic
Arm Type	Straight arm
Arm Length	3 m (9.84 ft), 4 m (13.12 ft), 5 m (16.40 ft), 6 m (19.69 ft)
Arm (Optional)	IPMECD-0312-M30 3 m straight arm IPMECD-0312-M40 4 m straight arm IPMECD-0312-M50 5 m straight arm IPMECD-0312-M60 6 m straight arm
Opening/Closing Time	Barrier with 3 m arm: 0.9 s or 1.4 s Barrier with 4 m arm: 1.4 s Barrier with 5 m arm: 2 s Barrier with 6 m arm: 3 s
Ports
I/O	2 (on/off)
Status Output	2 channels (opening signal output, closing signal output)
Functions
Anti-drop	Realized by connected radar, coil, or IR sensor
Remote Control	Yes. Maximum distance: 50 m (164 ft)
Power Output	12V DC
General
Power Supply	220V AC±15% or 110V AC±15%
Power Consumption	150W
Spring Lifespan	5 million times

Ordering Information

Type	Model	Description
Barrier	DHI-IPMECD-3012-RM30-T09	3m straight arm (right). Speed: 0.9 s
	DHI-IPMECD-3012-LM30-T09	3m straight arm (left). Speed: 0.9 s
	DHI-IPMECD-3012-RM40-T14	4m straight arm (right). Speed: 1.4 s
	DHI-IPMECD-3012-LM40-T14	4m straight arm (left). Speed: 1.4 s
	DHI-IPMECD-3012-RM50-T20	5m straight arm (right). Speed: 2 s
	DHI-IPMECD-3012-RM30-AC110	3m arm (right). 110V AC. Speed: 0.9 s
	DHI-IPMECD-3012-LM30-AC110	3m arm (left). 110V AC. Speed: 0.9 s

Dimensions & Wiring

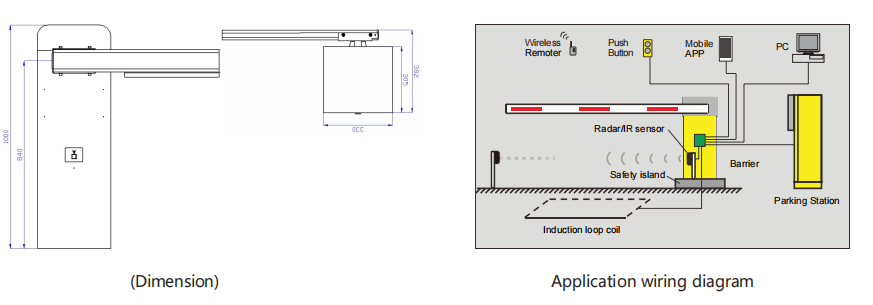

(Dimension)

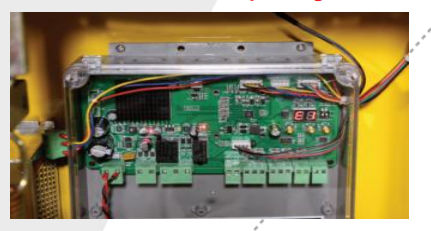

Wiring Diagram

DHI-IPMECD-3012 - UPDATE MODEL
